TDM-D190 Series
TDM-D190 Series

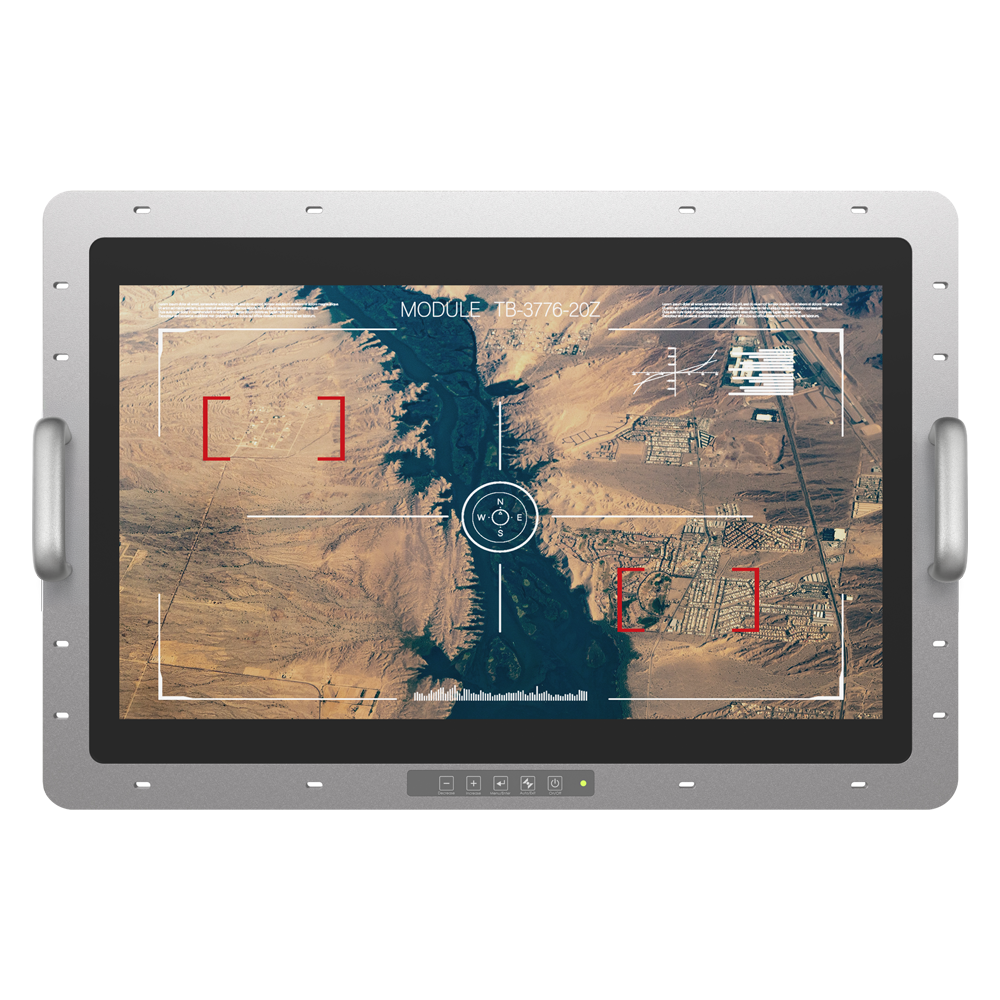

The TDM-D190 Series is a mission-critical 19-inch rugged monitor engineered specifically for harsh military and industrial environments. Certified to MIL-STD-704F, MIL-STD-1275E, MIL-STD-461G, and MIL-STD-810H standards. Designed for shipboard CIC, bridge consoles, shore-based C2, aircraft maintenance hangar, and USV/UGV front-line vehicle computers and C5ISR operations, offering high performance optics with military-grade durability.
Product Highlights - Advantages and Benefits
- Superior Optical Performance: Features a 19" 1280 x 1024 SXGA LCD with 1600 nits high brightness, Anti-Glare (AG) treatment and optical bonding to optimize outdoor readability.
- Military-Grade Certification: Certified to MIL-STD-704F, MIL-STD-1275E, and MIL-STD-461G for EMC/EMI compliance, as well as MIL-STD-810H for shock and vibration resilience.
- Extreme Environment Reliability: Supporting a wide temperature range from -40°C to 70°C.
- Enhanced Durability and Resistance: The full metal chassis and tempered cover glass provides superior mechanical strength, offering exceptional protection against physical damage, high-impact forces, and heavy vibrations common in industrial settings.
- Secure Connectivity: D38999/D26482 military connectors for all I/Os. Prevent accidental cable disconnection.
- Rapid Deployment: Flexible installation design.
- Stable Supply: 10-year longevity support and proactive notification of EOL.
- OSD Hot Key: The OSD features function keys, including power on/off and brightness adjustment, to meet application needs.
