LDK-D256
LDK-D256

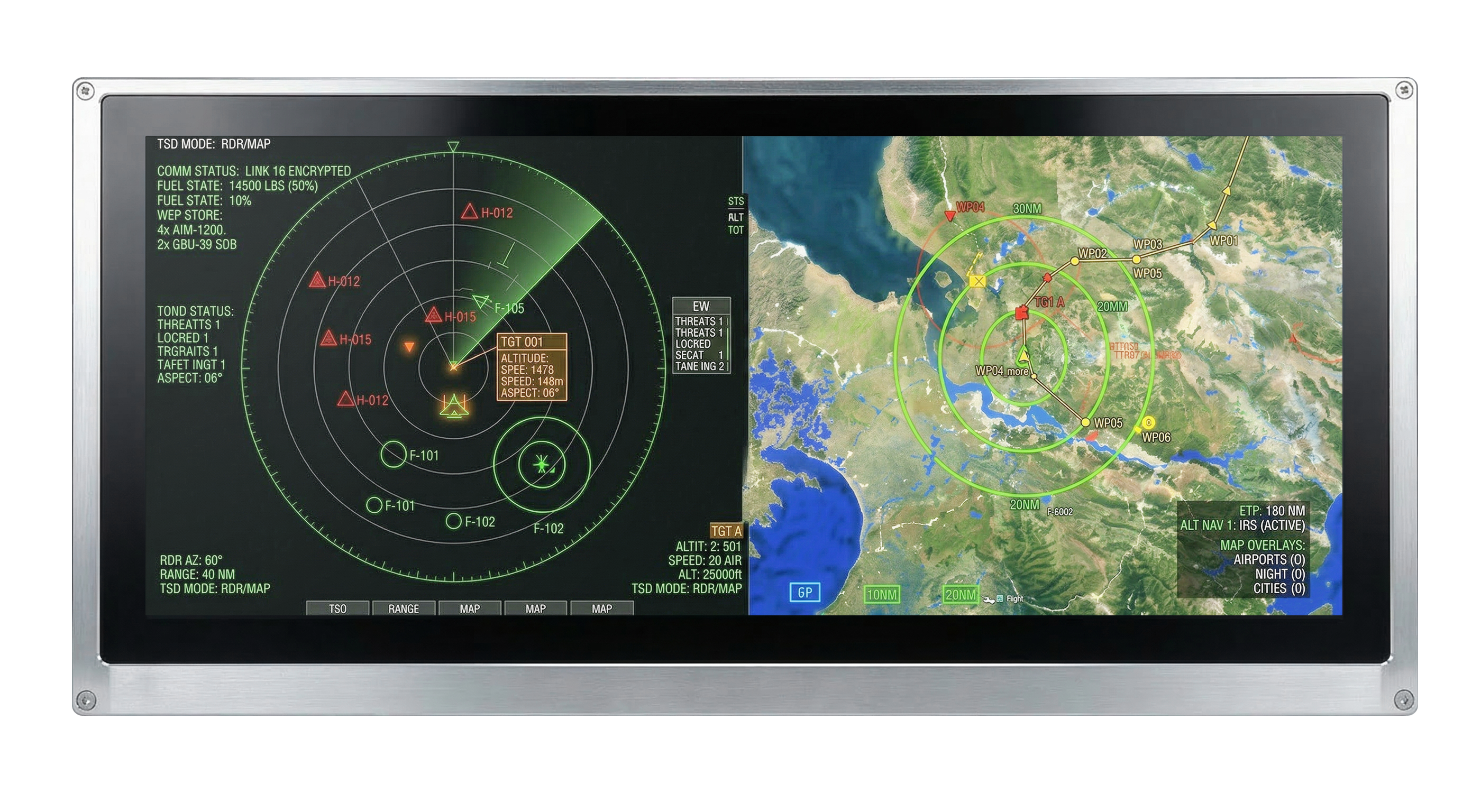

The LDK-D256 is a rugged 25.6" (24"x9") bar-type display engineered for extreme environments. Operating reliably from -60°C to +70°C with an integrated heating glass system, it delivers a high-visibility 1500 nits of brightness. Its innovative dual-zone architecture supports completely independent split-screen displays and independent P-Cap touch controls, making it ideal for demanding industrial, transportation, and outdoor applications.
Product Highlights - Advantages and Benefits
- Extreme Temperature Resilience (-60°C to +70°C): Equipped with an advanced integrated transparent heating glass system for the LCM and localized heaters for the AD boards. Ensures uninterrupted, flawless operation and prevents screen freezing or condensation in ultra-low temperature environments, making it ideal for mission-critical outdoor and aerospace applications.
- True Dual-Zone Independent Display Architecture: Features physically separated left and right display matrices (1600x1200 each), driven by two independent AD boards with its own HDMI input. Allows the simultaneous processing of distinct data streams (e.g., mapping software on the left, instrument gauges on the right) with zero signal tearing or interference, eliminating the need for complex software-based screen partitioning.
- Ultra-High Brightness for Sunlight Readability: Integrates high-efficiency LED back light module delivering an impressive 1500 nits of surface brightness after touch panel bonding. Guarantees crystal-clear visual clarity and superior contrast even under direct sunlight or in high-ambient-light conditions.
