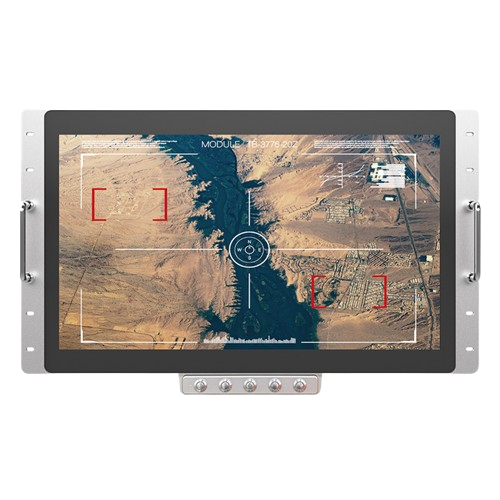

TDM-D215-00C Rugged Military Monitor (21.5", 1500 nits)

TDM-D215-00C

TDM-D215-00C

21.5" Military P-cap Monitor, 1500nits, Rackmount, Certificated with MIL-STD-461G, Front Side IP65, AG, Panel Mounting Kits, 24VDC Power Input

Product Highlights - Advantages and Benefits
  • 21.5'' 1920*1080 FHD LCD and P-cap Touch
  • IP65 and Rackmount Shape Front Bezel
  • 1500 nits LED backlight
  • Mosmite Film with AR feature
  • Anti-Glare
  • HDMI by Metal Circular Connector
  • USB for Touch by Metal Circular Connector
  • DC Power Input by MS3114E8 Circular Connector

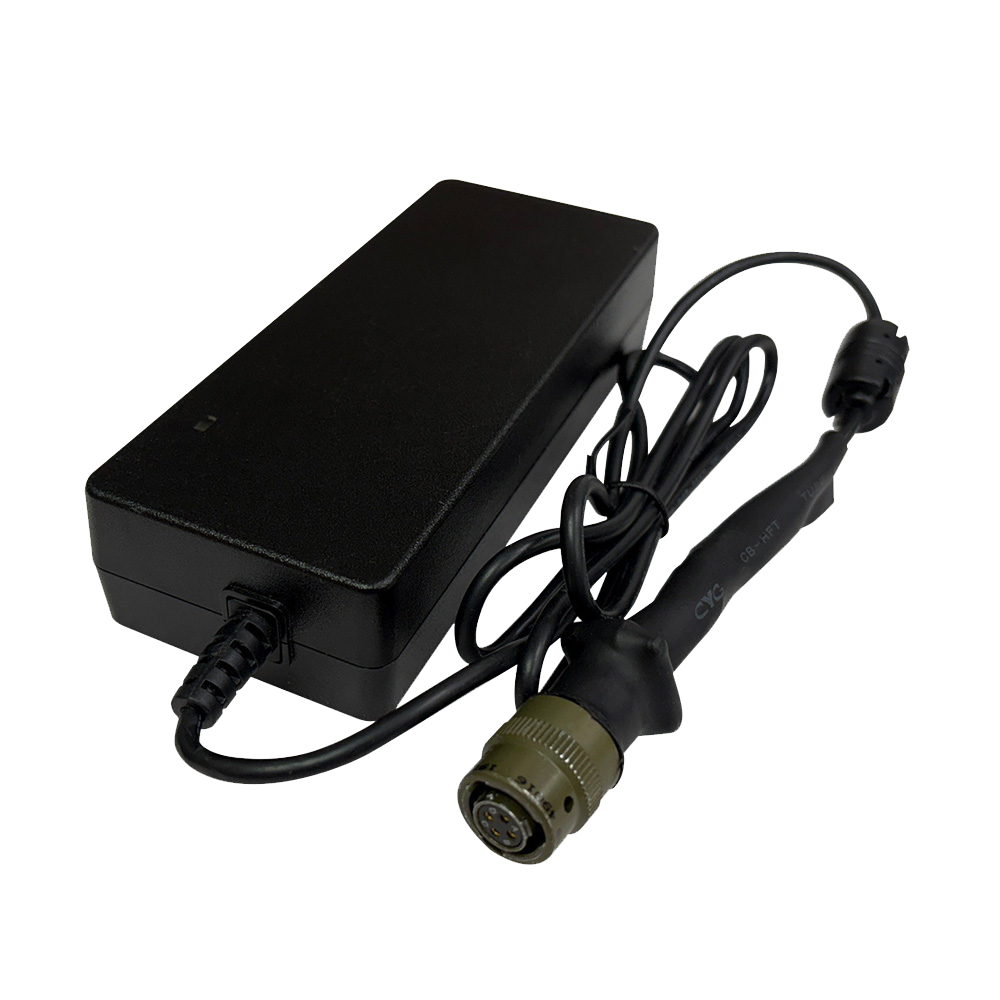

  • DC 24V Power Input with 90W power adapter
  • -40~70°C Operating Temperature
LCD
Max. Resolution1920*1080
Contrast Ratio1000 : 1
Max. Color16.7 M
Luminance (cd/m2)1500 nits
View Angle89/89/89/89

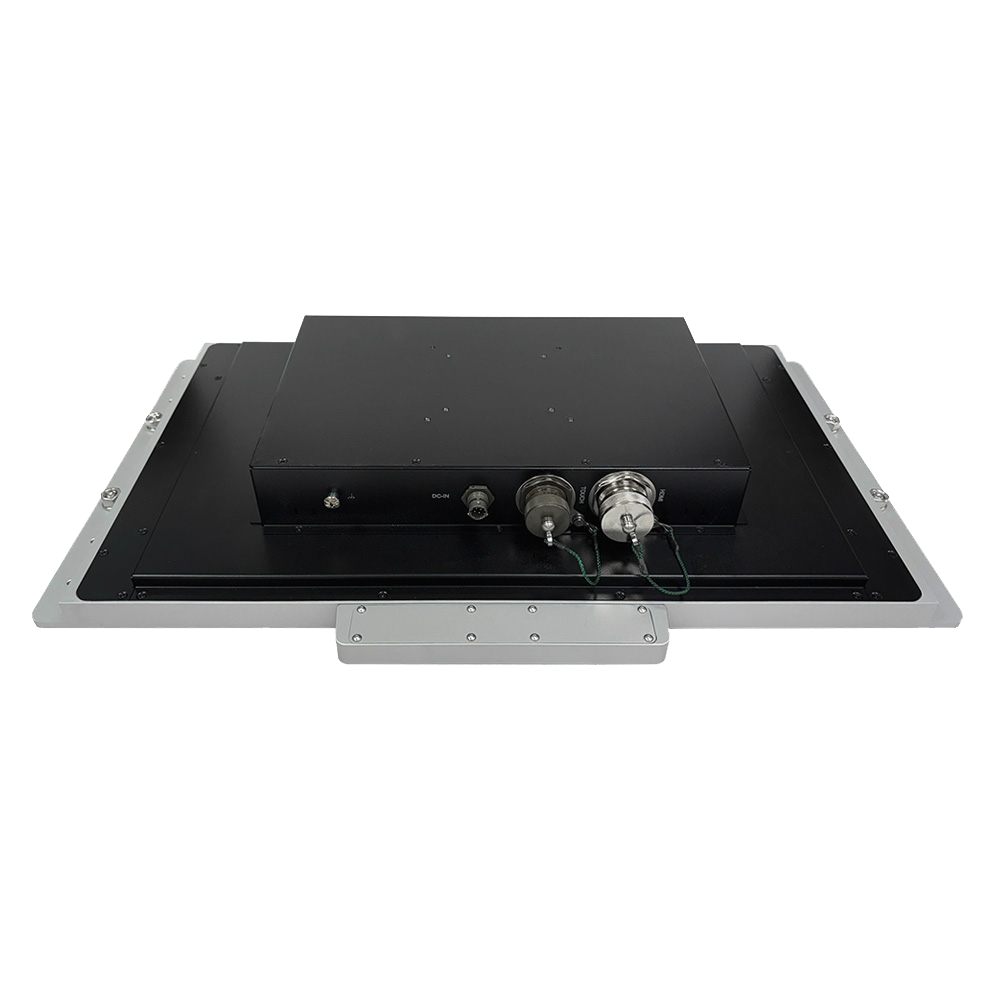

I/O Connect
External I/O Port

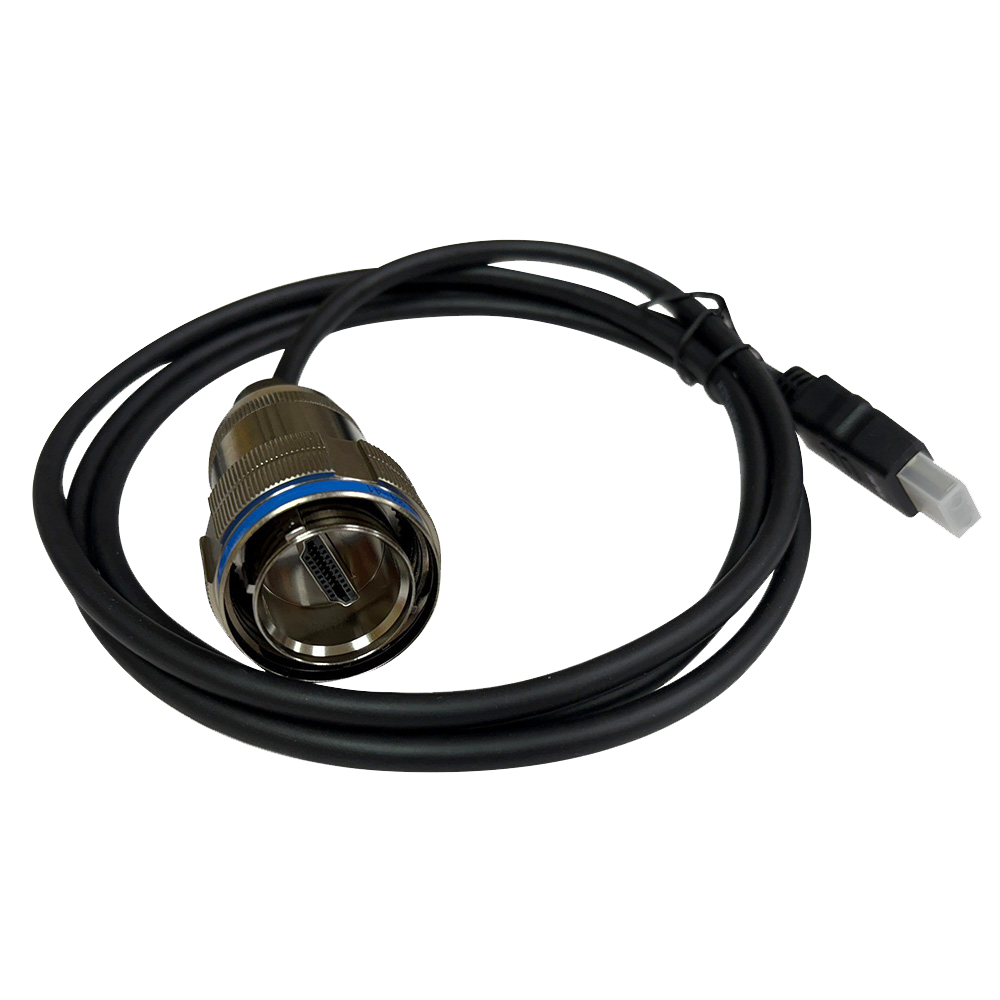

  • • HDMI by Metal Circular Connector (with 1.5 meter external cable)

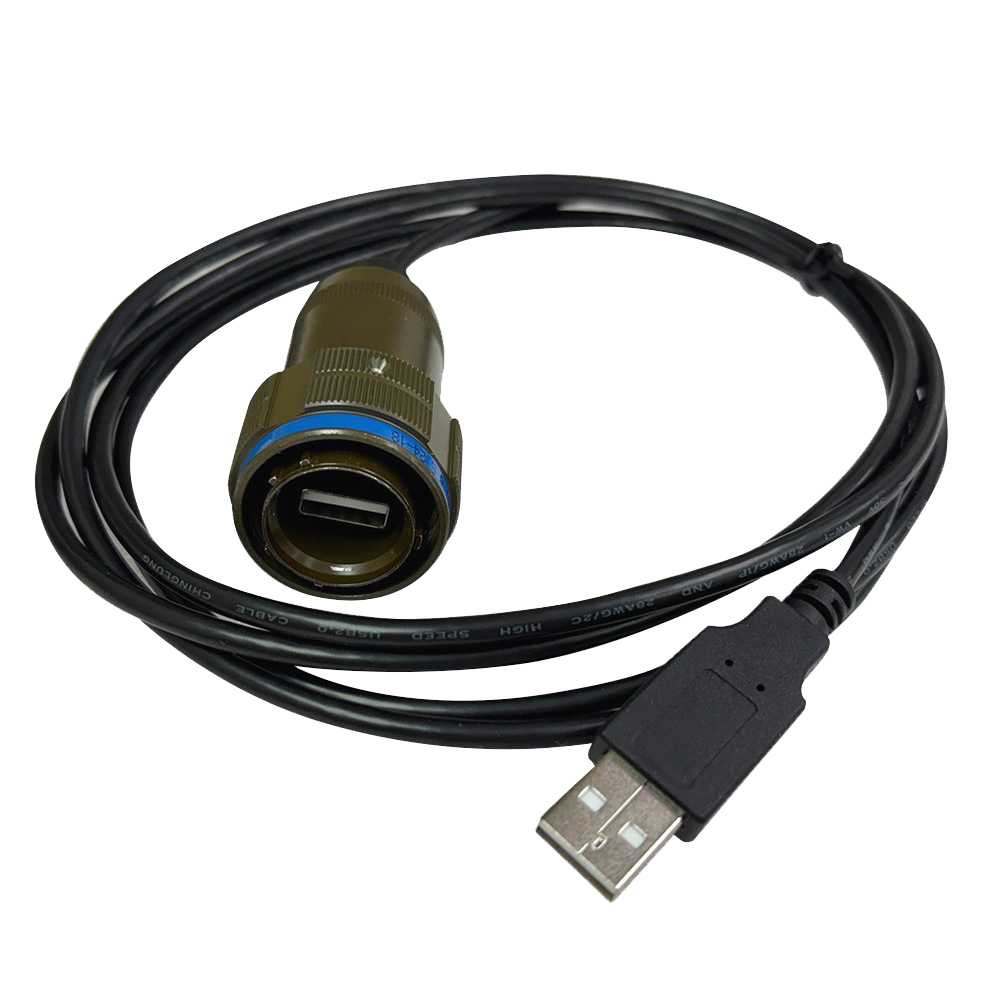

  • • USB(for Touch) by Metal Circular Connector (with 1.5 meter external cable)
  • • Power Input by MS3114E8 Connector
Power Requirement
Power Input24VDC Power Input by MS3114E8 Connector
Touch Screen
TypeP-cap USB
Environment
Operating Temp.-40~70 °C, IEC-60068-2-1/2/14
Storage Temp-40~70 °C
Humidity10~90% @40 °C, non-condensing
EMC
  • • MIL-STD-1275E Certification
  • • MIL-STD-461G Certification For CE101/102, RE101/102
  • • FCC / CE Class A Certification
  • • MIL-STD-1275E, MIL-STD-704F Compliance
Vibration
  • • MIL-STD-810H, Method 514.8
  • • Procedure I, 5~500Hz Certification
Shock
  • • MIL-STD-810H, Method 516.8
  • • Procedure I, 20g 11ms Certification
Mechanical

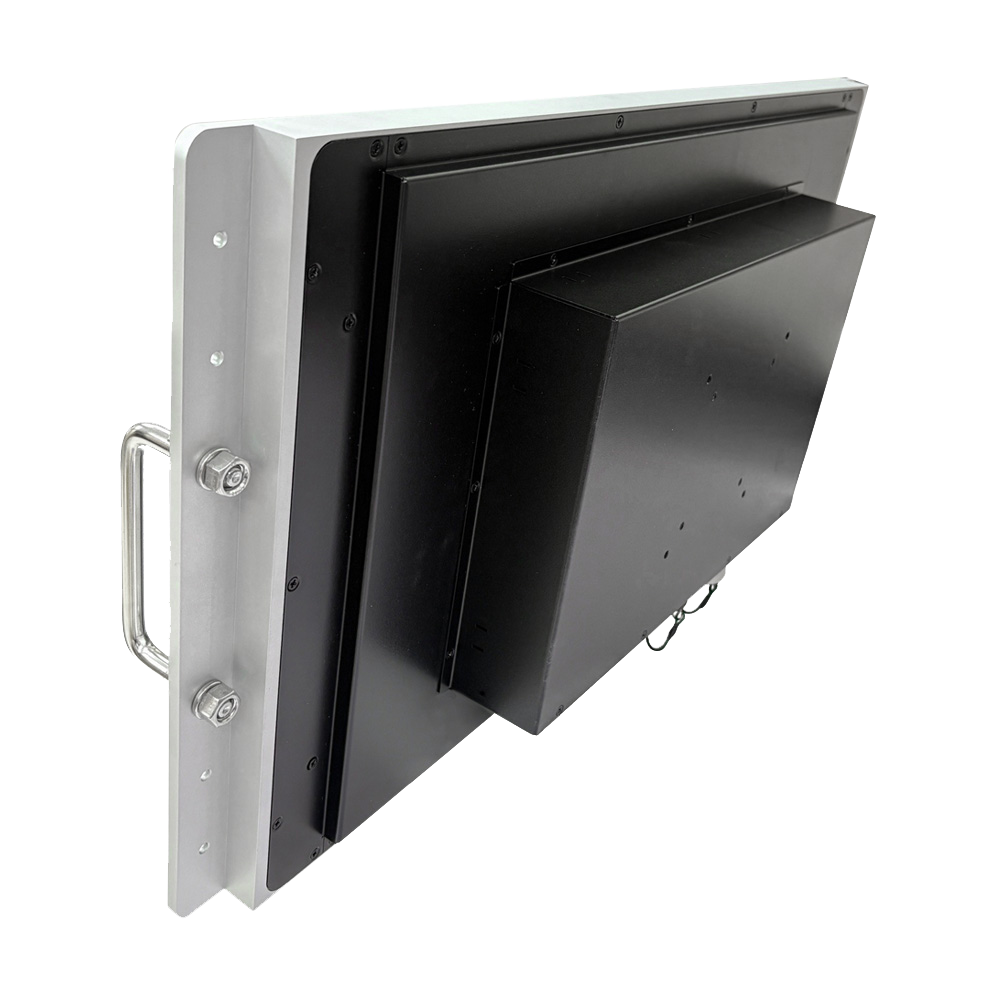

ConstructionAluminum Bezel and Metal case
IP RatingIP65 Front Side
MountingWall Mount, VESA Mount
DimensionTBC
Ordering Information
TDM-D215-00C21.5" Military P-cap Monitor, 1500nits, Rackmount, Certificated with MIL-STD-461G, Front Side IP65, AG, Panel Mounting Kits, 24VDC Power Input
Drawing
Driver
Certification

Can't find what you're looking for? Need help?

Visit our support pages for helpful contacts, guidance on obtaining documentation, warranty and repair details, contract templates, and insights into our Product Lifecycle and Configuration Management programs

Get Support

Related Product

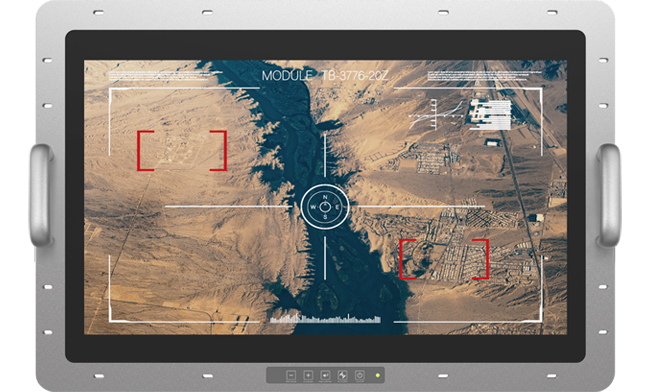

TDM-D240
TDM-D240

The TDM-D240 Series is a mission-critical 24-inch rugged monitor engineered specifically for harsh ...

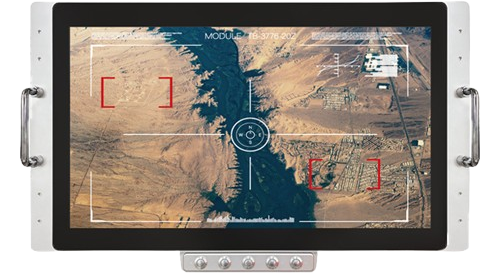

TDM-D240-00C
TDM-D240-00C

24" Military P-cap Monitor, 1500nits, Rackmount, Certificated with MIL-STD-461G, Front Side IP65, AG, Panel Mounting Kits ...

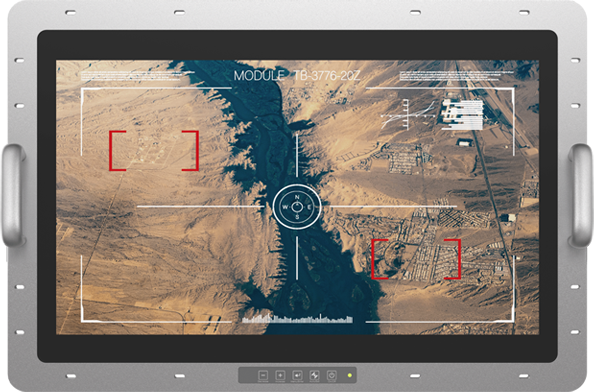

TDM-D215
TDM-D215

21.5" Defense Monitor, 1500nits, Console Mount, IP65 Aluminum Front Bezel, Mosmite Film, AG, VGA/DP/HDMI, DC 9~36V, MIL-STD ...

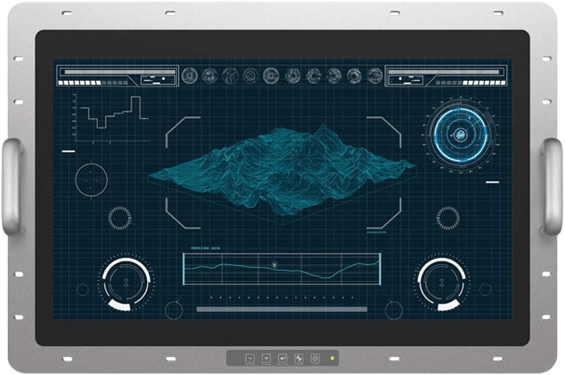

LPC-D240 Series
