- 21.5'' Aluminum Bezel Free Design
- 21.5'' P-cap with 1000 nits LED Backlight
- IP65 Front Bezel
- 1920*1080 Resolution
- DC 9~36V Power Input
- AG Coating

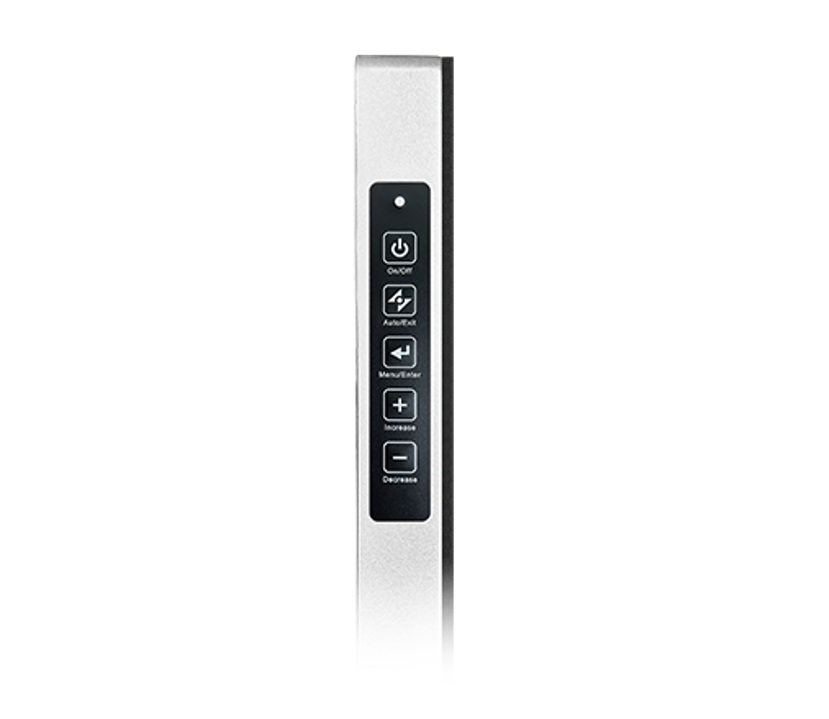

- OSD on the front / Right side
- 1000 nits LED Backlight
- Specification
- I/O Connect
External I/O Port
HDMI Port x 1
DVI Port x 1
VGA Port x 1
USB Port x 1
OSD x 1
- Power Requirement
Power Input
DC9~36V
- LCD
Max. Resolution
Contrast Ratio
1000:1
Max. Color
16.7 M
Luminance (cd/m2)
1000 nits
Response Time (Rising)
8 ms
View Angle
89 / 89 / 89 / 89
-
Touch Screen
Type
P-cap USB
-
Mechanical
Construction
Metal and Aluminum Bezel
IP Rating
IP65 Front Side
Mounting
Rackmount, Wall Mount , VESA Mount
Dimension
TBC
- Environment
Operating Temp
-20~70 °C，IEC-60068-2-1/2/14
Storage Temp
-20~70 °C
Humidity
10~90% @40 °C, non-condensing
EMC
FCC / CE Class A Certification
Vibration
MIL-STD-810H, Method 514.8, Procedure I, 5~500Hz (Compliance)
Shock
MIL-STD-810H, Method 516.8, Procedure I, 20g 11ms (Compliance)
- Ordering Information
- Ordering Information
TDM-P215WTHAG-9OL
21.5” P-cap touch Monitor, 1000 nits, AG coating, 8 ms response time, OSD on the front/ right side, with 3 Pin terminal block adapter
