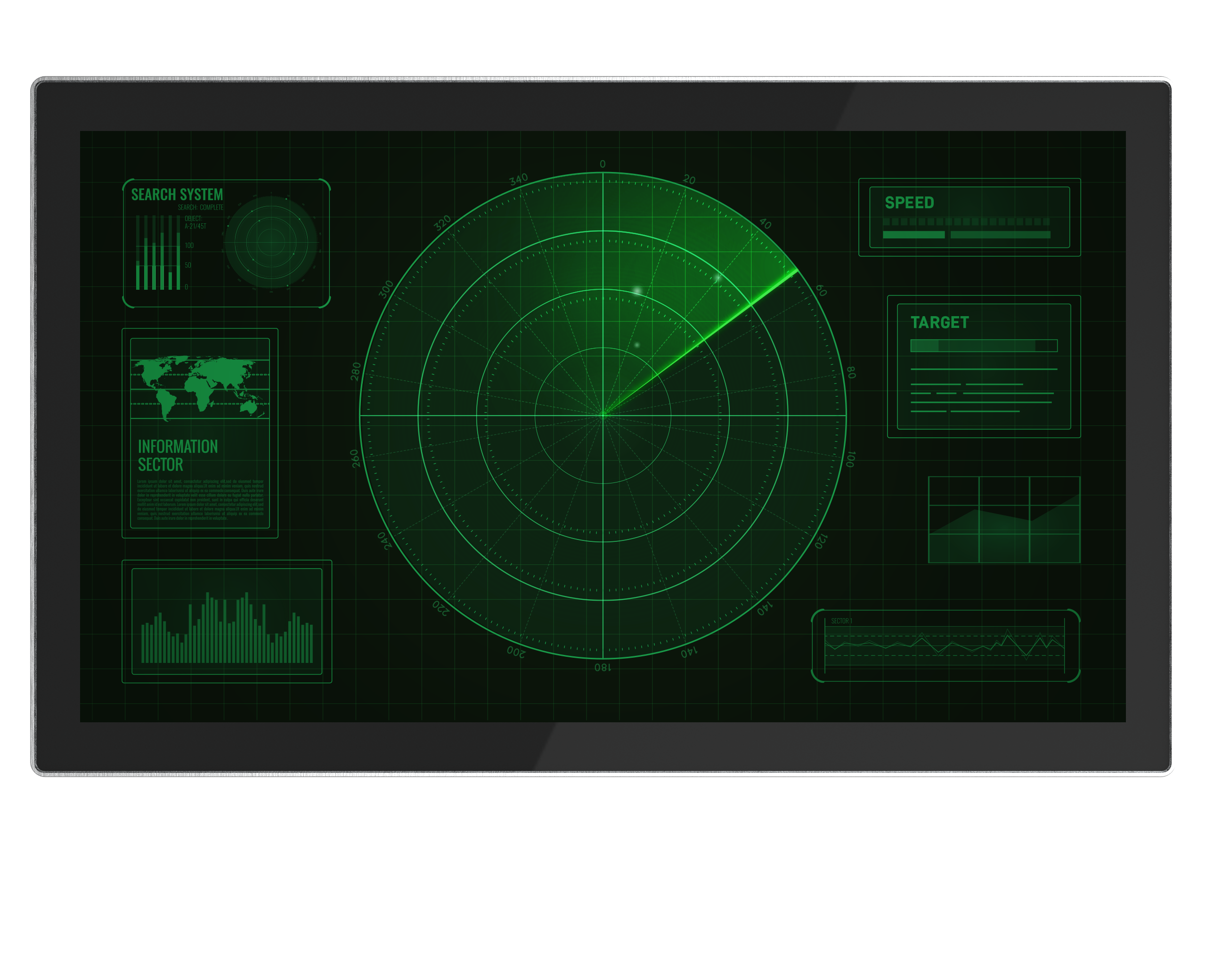

TDM-D215-NVIS Rugged Rackmount Monitor (21.5", NVIS Green B, 1000 nits)

TDM-D215-NVIS

TDM-D215-NVIS

21.5" Rugged Rackmount Monitor, Full HD 1920 x 1080, 1000 nits Day Mode Brightness, 5000:1 Contrast Ratio, NVIS Green B Compliant, Compliant with MIL-STD-810H, MIL-STD-461G (RE-102 for Ground Army), Front Side IP65, Anti-Glare Cover Glass, 9~36VDC Power Input with Full Range AC/DC 24V 90W Power Adapter, Operating Temperature -10~70°C, MIL Connectors

Product Highlights - Advantages and Benefits
  • 21.5" 1920 x 1080 FHD LCD with Anti-Glare Cover Glass, Front IP65 Rackmount Bezel
  • 1000nits LED Backlight (Day Mode)
  • Dual Mode Design (Day Mode / NVIS Mode)
  • MIL-STD-3009 NVIS Green B Compliant
  • Optical Bonding
  • 2x HDMI MIL-DTL-38999 Receptacle HDMIFTV7AG
  • OSD / RS-232 (DB-9F) Display Signal Input Control by MIL-DTL-38999 Receptacle 24WB35PN
  • DC Power Input 9~36VDC MIL-DTL-26482 Receptacle MS3114E8-4P
  • AC/DC 24V 90W Power Adapter w/ MIL-DTL-26482 Plug MS3116F8-4S
  • Operating Temperature -10~70°C
LCD
Max. Resolution1920*1080
Contrast Ratio5000 : 1
Max. Color16.7M
Luminance (cd/m2)
  • Day Mode: 1–1000 nits
  • Night Mode: ≤0.5 nits (Customizable upon request)
View Angle89/89/89/89
Touch Screen
TypeN/A
Cover Glass
TypeAnti-Glare Cover Glass
OSD Control
Front BezelFront OSD buttons: Power On/Off, Auto/Exit, Menu/Enter, Brightness Adjustment (+/−)
RemoteDisplay Signal Input Control via RS-232 (DB-9F) by MIL-DTL-38999 Receptacle 24WB35PN
I/O Connect
External I/O Port
  • • 2x HDMI MIL-DTL-38999 Receptacle HDMIFTV7AG
  • • 1x RS-232 (DB-9F) Display Signal Input Control by MIL-DTL-38999 Receptacle 24WB35PN
  • • 1x DC Power Input by MIL-DTL-26482 Receptacle MS3114E8-4P
  • • 1x GND Screw for Safety Grounding
Power Requirement
Power InputDC 9~36V Wide Range Power Input, Typical 24VDC/3.75A 90W
Power SupplyUniversal AC/DC 24V/3.75A 90W Power Adapter w/ MIL-DTL-26482 Plug MS3116F8-4S
Mechanical
ConstructionAluminum Flat Bezel with Metal case
IP RatingIP65 Front Side
MountingRackmount
Dimension
  • 599.80(W) x 391.26(H) x 84(D) mm, not includes Handles
  • 599.80(W) x 391.26(H) x 134(D) mm, includes Handles 50mm depth
Environment
Operating Temp-10~70 °C
Storage Temp-40~70 °C
Humidity10~90% @40 °C, non-condensing
Certification EMC
  • • MIL-STD-461G Compliant (CE101/CE102/RE101/RE102)
  • • MIL-STD-1275E Compliant
  • • MIL-STD-704F Compliant
  • • FCC / CE Class A Compliant
Vibration
  • • MIL-STD-810H, Method 514.8, Procedure I, 5~500Hz Certification
  • • IEC-60068-2-64, 1.5 Grms @10~500Hz Compliant
Shock
  • • MIL-STD-810H, Method 516.8, Procedure I, 20g 11ms Certification

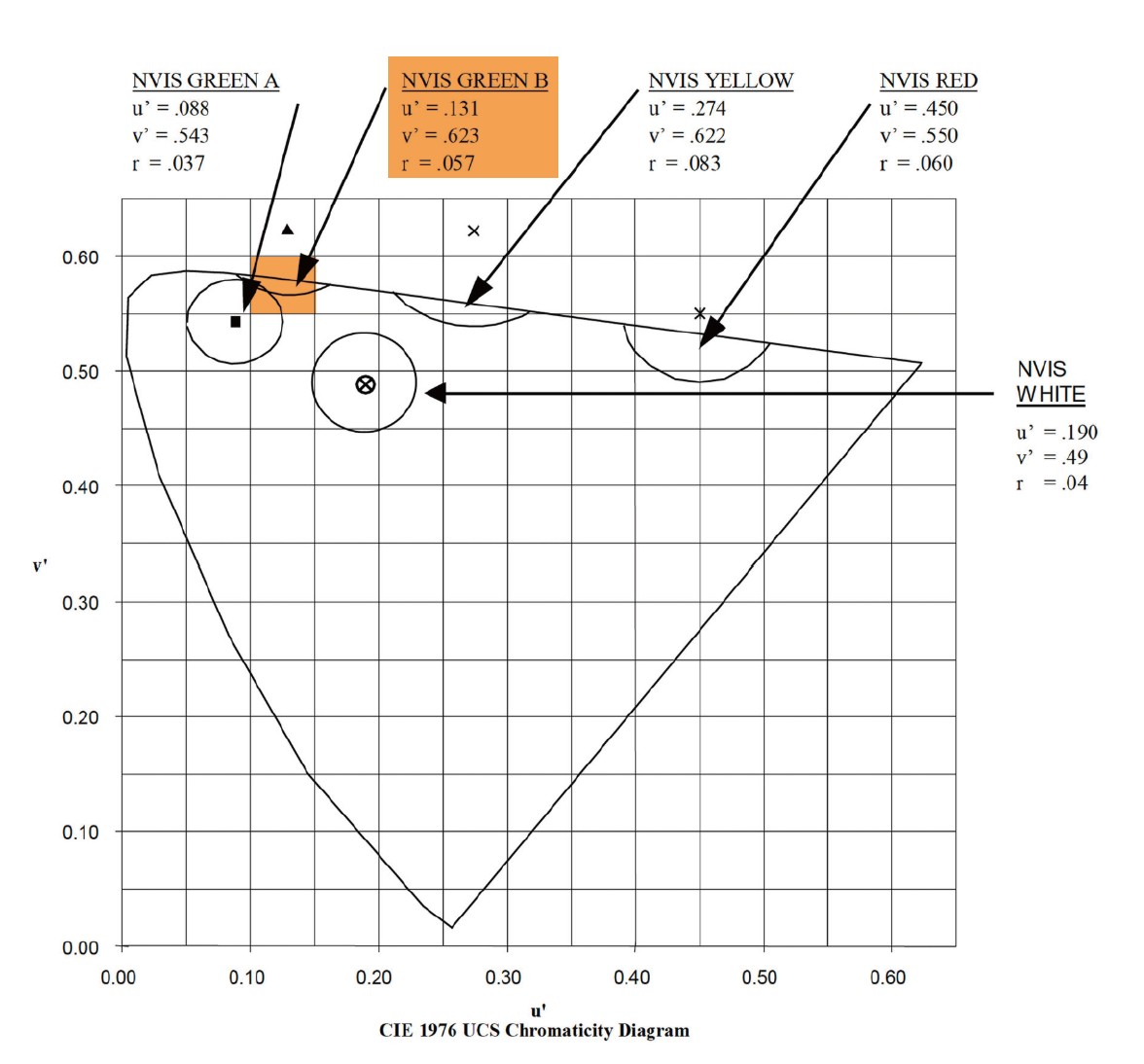

NVIS lighting color limits

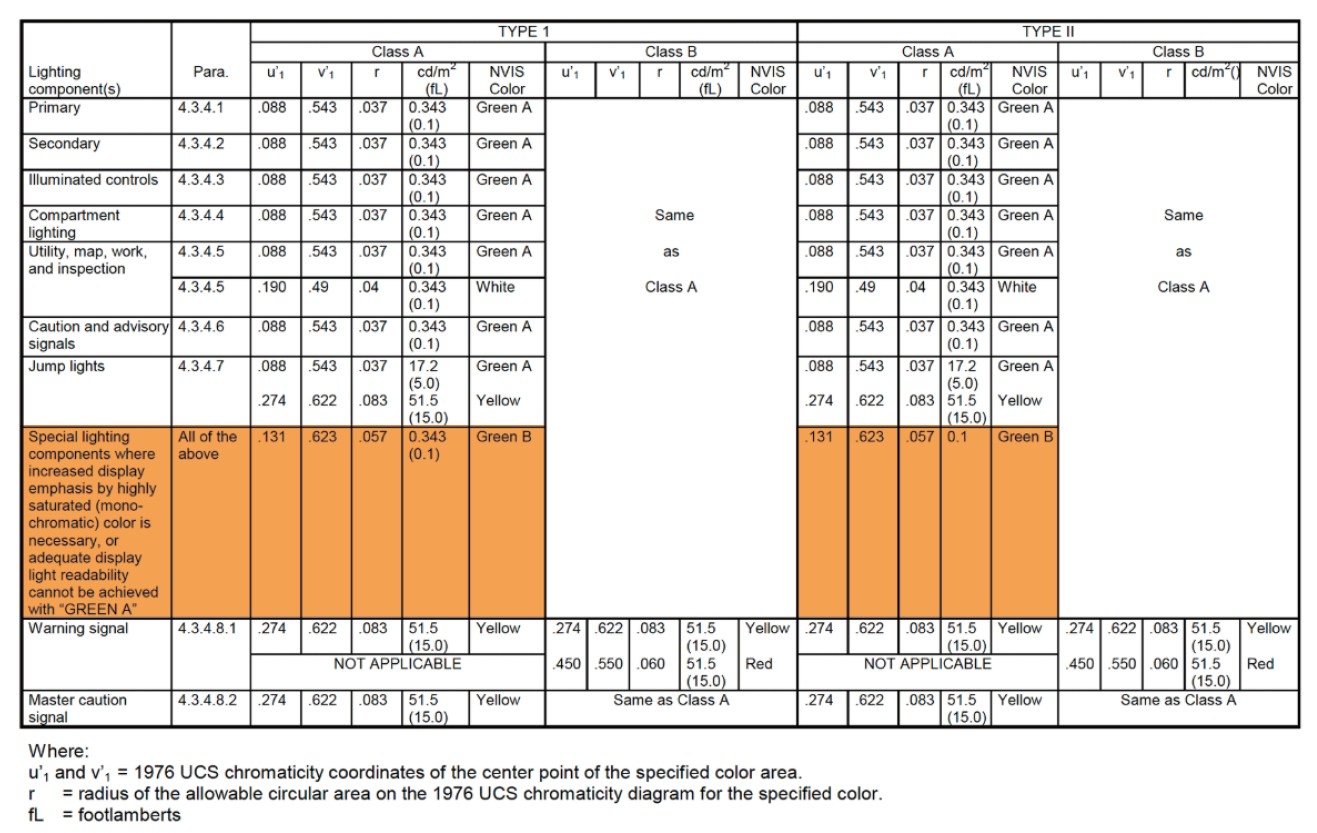

Chromaticity requirements
Dimension & I/O Connector
Ordering Information
TDM-D215-AD1 21.5" Rugged Rackmount Monitor, Full HD 1920 x 1080, 1000 nits Day Mode Brightness, 5000:1 Contrast Ratio, NVIS Green B Compatible, Compliant with MIL-STD-810H, MIL-STD-461G (RE-102 for Ground Army), Front Side IP65, Anti-Glare Cover Glass, 9~36VDC Power Input with Full Range AC/DC 24V 90W Power Adapter, Operating Temperature -10~70°C, MIL Connectors
