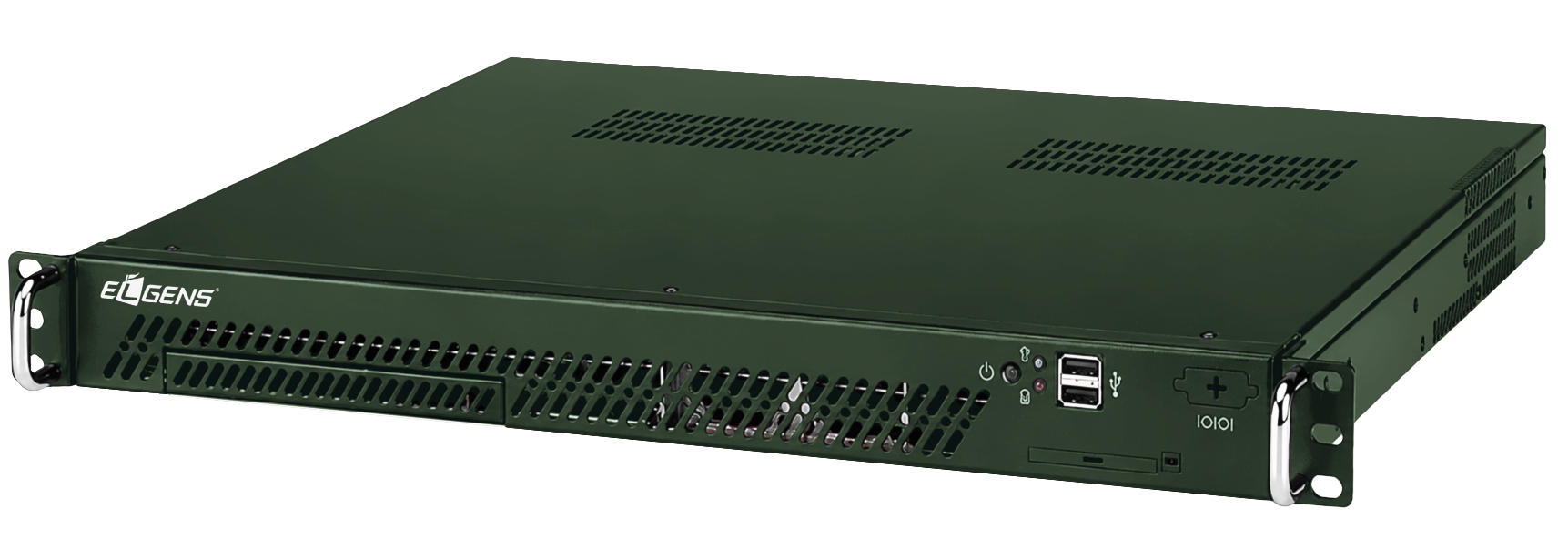

Shelby 1U PQC Gateway Series

The Shelby 1U PQC Gateway Series is a high-performance cybersecurity gateway engineered to enable seamless adoption of Post-Quantum Cryptography (PQC) for existing enterprise and industrial infrastructures. Powered by Intel® Core™ processors supporting 14th, 13th, and 12th Gen platforms, it delivers high-performance cryptographic processing while preserving existing server architectures through a non-intrusive gateway deployment model. With enterprise-grade hybrid TLS, TPM 2.0, high-availability architecture, and flexible PCIe expansion, the Shelby 1U Series provides a future-ready security platform for defense, finance, telecommunications, healthcare, and critical infrastructure.

TPM 2.0 Post-Quantum Cryptography CE FCC FIPS 203 - ML-KEM FIPS 204 - ML-DSA FIPS 205 - SLH-DSA
Why Shelby 1U PQC Gateway Series?
  • Protect Existing Infrastructure — Secure legacy servers without replacing current IT investments.
  • Accelerate PQC Migration — Adopt PQC-enabled hybrid TLS without disrupting existing infrastructure.
  • Mission-Critical Reliability — Combines redundant power and hardware bypass NICs to maximize service continuity.
  • High-Speed Fiber Connectivity — Supports 10GbE SFP+ SR fiber networking for high-bandwidth security deployments.
  • Enterprise-Class Trusted Hardware — Onboard TPM 2.0, Secure Boot, and full-disk LUKS encryption.
  • High-Density 1U Deployment — Standard 19" 1U rackmount form factor optimizes rack space utilization.

Features, Advantages and Benefits

Features
1
Ready Computing Platform

Powered by Intel® Core™ processors supporting 14th, 13th, and 12th Gen platforms (up to 24 cores), providing robust cryptographic processing performance required for demanding Post-Quantum Cryptography (PQC) workloads.

2
Enterprise-Class Power Redundancy

Supports a 300W 1+1 hot-swappable redundant power supply (100–240V AC), allowing continuous system operation in the event of a single PSU failure.

3
Enterprise-Class Trusted Security

Provides hardware-backed security through onboard TPM 2.0, Secure Boot, and LUKS disk encryption, with TPM-based private key protection for enhanced system integrity and cryptographic key security.

4
High Availability & Fail-Safe Networking

Supports High Availability (HA) deployment and hardware bypass networking for enhanced service and network resilience, with Syslog-compatible logging for enterprise management and SIEM integration.

Advantages
1
Enterprise-Class Network Expansion

Supports PCIe Gen4 x16 expansion for 10GbE and 25GbE network interfaces, including hardware bypass configurations, enabling flexible high-bandwidth connectivity and enhanced network resilience for enterprise and critical infrastructure environments. (*Note: Customer infrastructure is required to support SNMP/IP management for bypass network routing.)

2
High-Density 1U Deployment

Optimized for standard 19-inch rack environments, delivering high-density cybersecurity deployment and simplified cable management in a compact 1U footprint to maximize server rack space utilization.

Benefits
1
High Availability Architecture

Combines dual-Gateway High Availability (HA), 1+1 redundant power, and hardware bypass networking to enhance service availability, power resilience, and network path continuity for mission-critical deployments.

2
Seamless PQC Integration

Enables existing servers and network infrastructure to adopt Post-Quantum Cryptography (PQC) protection through the Shelby 1U PQC Gateway Series without replacing existing hardware or redesigning system architecture.

3
Validated Low Latency & High Concurrency

Delivers only ~2.3% additional PQC handshake latency while supporting 20,000 concurrent connections and over 1.55 million ML-KEM handshakes in endurance testing.

System
CPUIntel® Core™ 14th / 13th / 12th Gen Processors (LGA1700, Up to 65W)
System Memory2x 260-pin DDR4 3200 MHz SO-DIMM, Max. 64GB
PQC OptimizationDesigned for high-performance Post-Quantum Cryptography (PQC) gateway applications

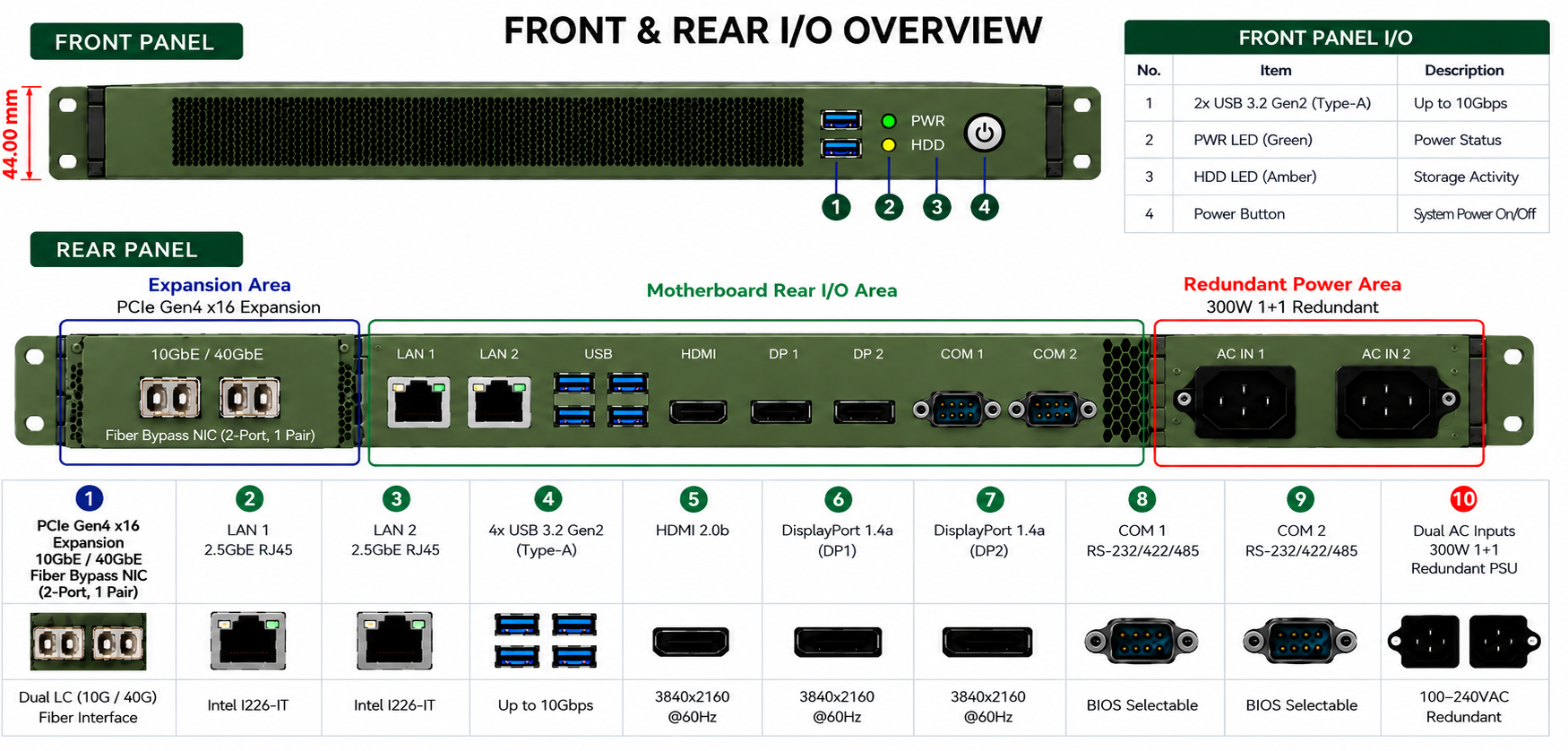

External I/O Port
  • • 1 x HDMI 2.0b, 2 x DisplayPort 1.4a
  • • 1 x Line-out, 1 x Mic-in
  • • 2 x 2.5GbE RJ45 LAN Ports (Intel® i225LM/i226LM)
  • • 4 x USB 3.2 Gen 2 (Rear), 2 x USB 2.0 (Optional Front)
Expansion
  • • 1 x PCIe Gen4 x16 Slot (via 1U Riser Card)
  • • 1 x M.2 Key B (3042/3052 with SIM Socket for 4G/5G LTE)
  • • 1 x M.2 Key E (2230 with PCIe x1/USB 2.0/CNVi for Wi-Fi)
Storage & Expansion Slots
Storage & Expansion Slots
  • • 1 x M.2 Key M (2242, PCIe Gen4 x4 / SATA3 SSD)
  • • 1 x M.2 Key M (2242/2260/2280, PCIe Gen3 x4 NVMe SSD)
  • • 4 x SATA3 (6Gb/s, Supports RAID 0/1/5/10)
Operating SystemUbuntu Linux 22.04 / 24.04 LTS
Security
  • • TPM 2.0 + Secure Boot
  • • TPM 2.0 + LUKS
  • • PQC-Enabled Hybrid TLS with TLS 1.3 / TLS 1.2 Compatibility
  • • Security Audit Logging
Environment
Power Input300W 1+1 Hot-Swappable Redundant Power Supply (100–240V AC Input)
Dimensions431.8 (W) x 321.6 (D) x 44.0 (H) mm
WeightTBD
CertificationFCC / CE Class A Certified
Operating Temp0°C to 45°C
Storage Temp-20°C to 60°C
Humidity10% to 90% (non-condensing)
Software
Operating SystemUbuntu Linux 22.04 / 24.04 LTS
Core EngineReverse Proxy, PQC TLS Module, Legacy TLS Support, ML-KEM (FIPS 203)
Hybrid HandshakeAutomatically negotiates PQC-enabled TLS with compatible endpoints and maintains legacy TLS compatibility when PQC support is unavailable.
Certificate ManagementIndependent Gateway Certificate for Handshake identity verification; the protected server certificate remains unchanged.
Audit LoggingConnection Log, Access Log, Syslog-compatible, exportable as CSV / JSON
Management InterfaceWeb UI and CLI
Accessory
Hardware Bypass CardOptional 10GbE SFP+ Hardware Bypass Network Interface Card (PCIe Gen3 x8)
AC Power CordUS / UK / EU AC Power Cord (2x for Redundant Power Supply)

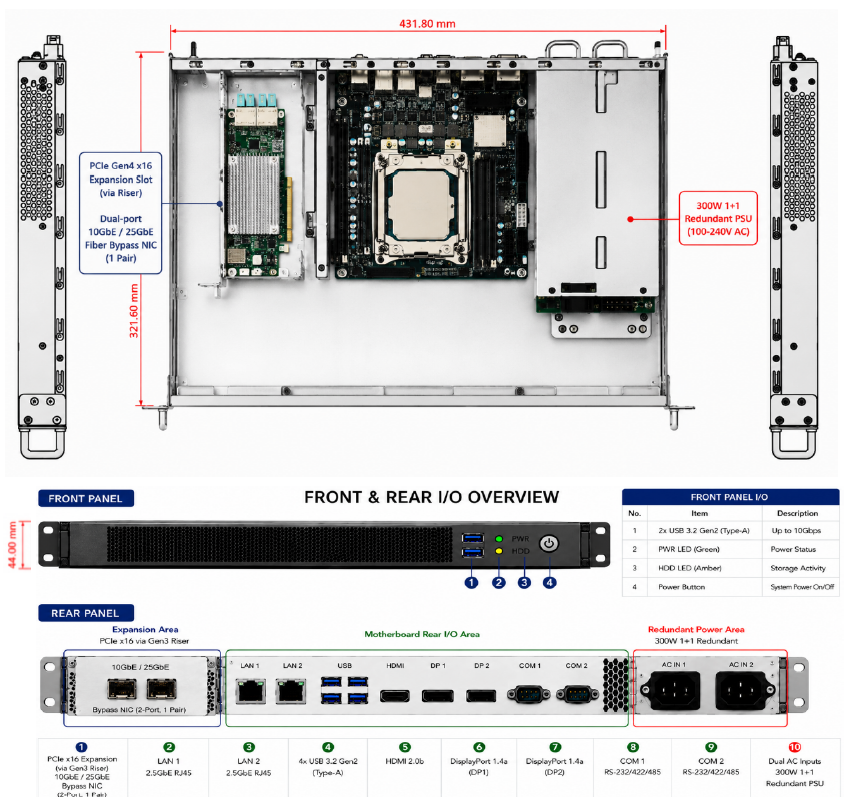

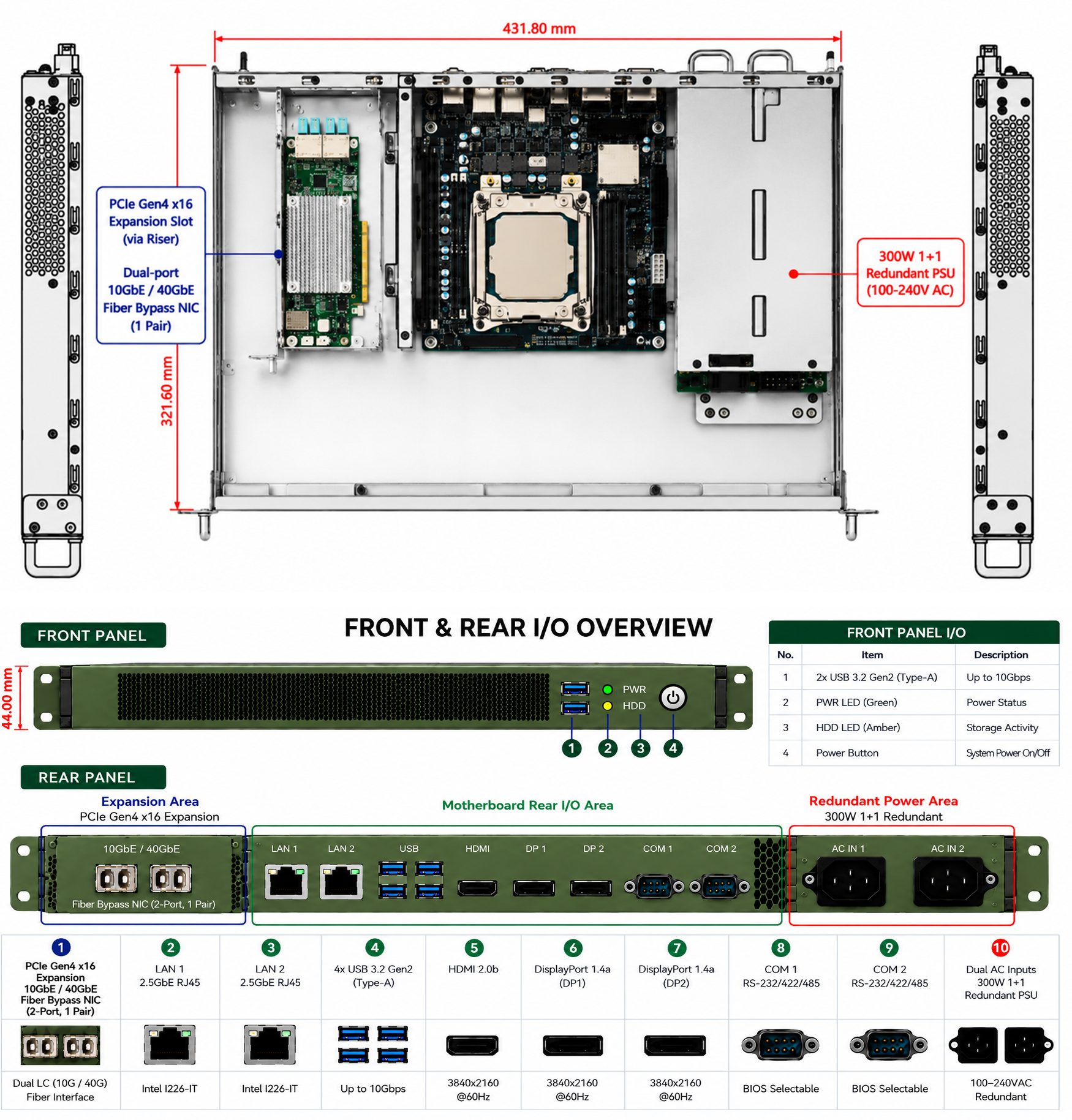

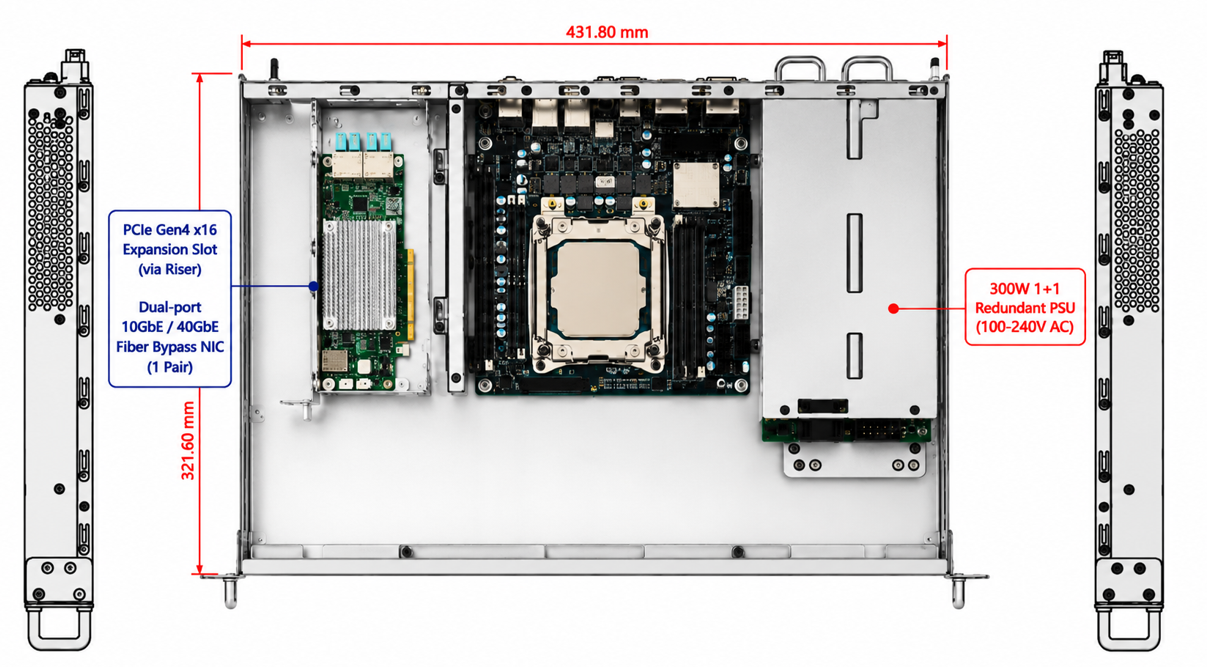

Dimension & I/O Connector

ModelCPUNetwork InterfaceMemoryStorage
Shelby-G5135 Intel® Core™ i5-13500TE 10GbE 16GB DDR4 128GB SATA SSD
Shelby-G7137 Intel® Core™ i7-13700TE 25GbE 16GB DDR4 128GB SATA SSD
