LDK-D215-NVIS
LDK-D215-NVIS

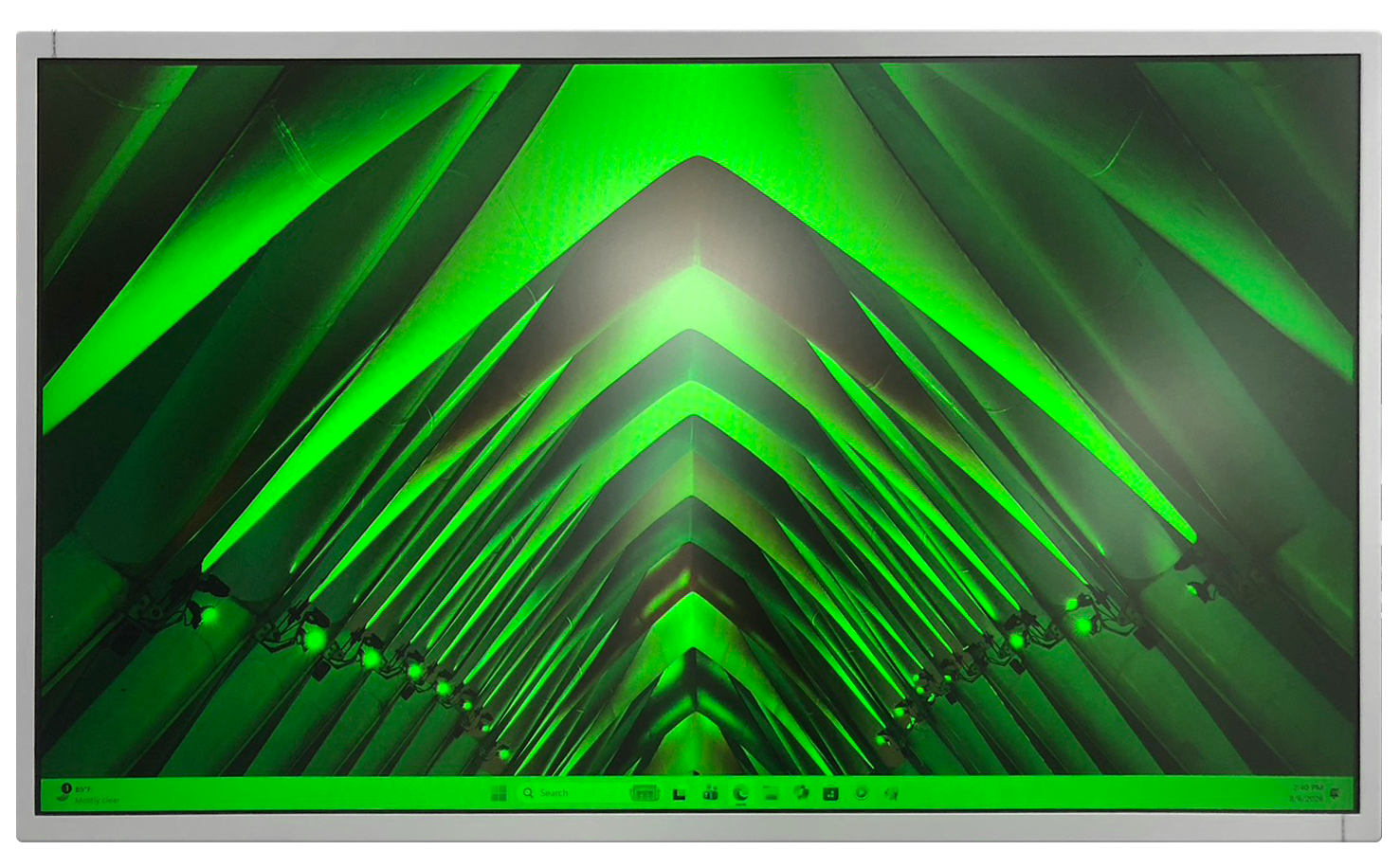

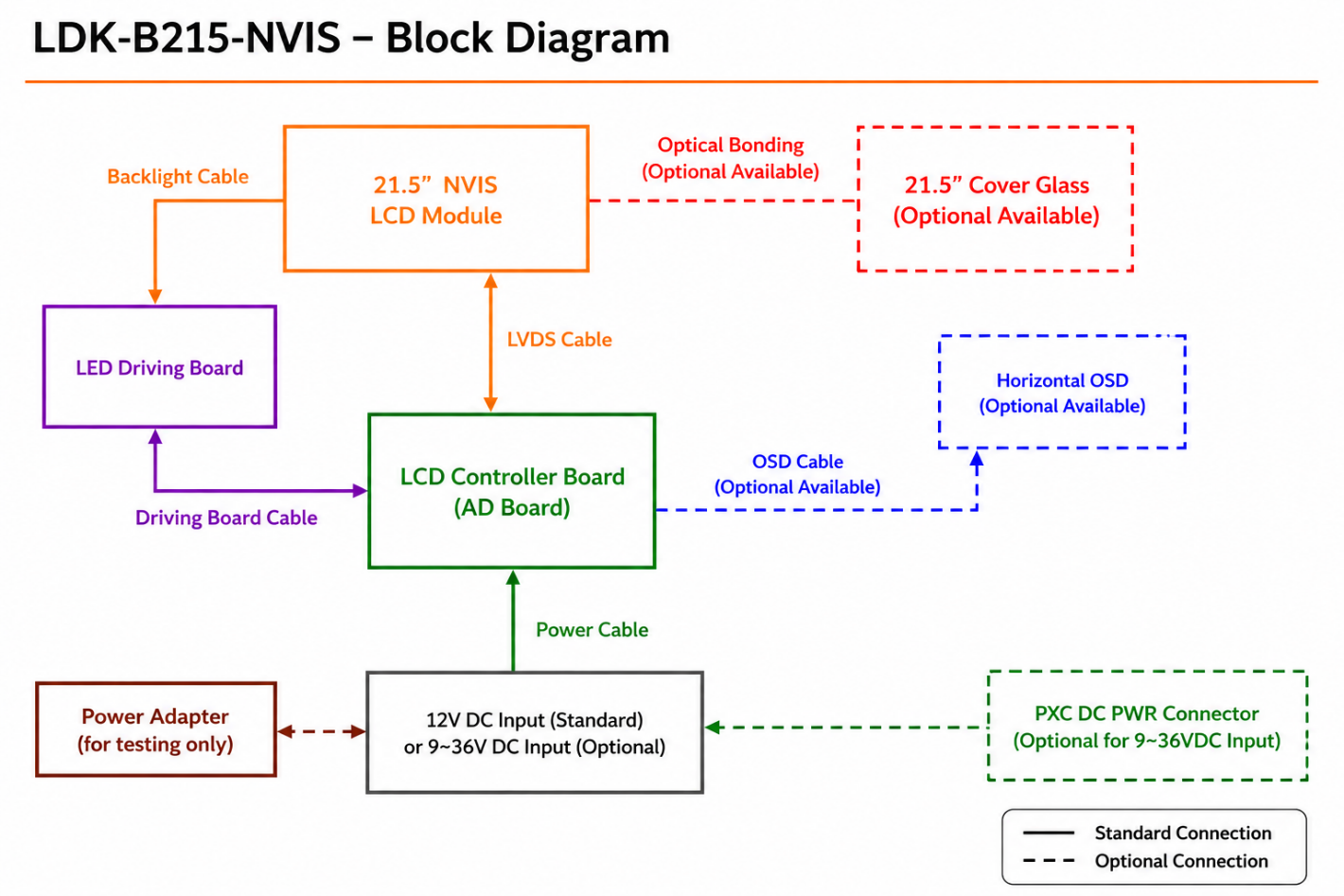

The 21.5" NVIS LCD Development Kit (LDK) is designed for system integration, evaluation, and development of military, defense, and tactical display applications. The kit features a Full HD (1920 × 1080) LCD module with dual-mode backlight design, supporting both 1000 nits Day Mode and MIL-STD-3009 compliant NVIS Green B Mode for seamless operation under daylight and night vision environments. Standard configuration includes LCD controller board, LED driver board, 9–36V wide-range power board, and horizontal OSD keypad, providing a complete evaluation platform for NVIS display development. The operating temperature range is -10°C to 70°C.
Product Highlights - Advantages and Benefits
- 21.5" 1920 x 1080 Full HD NVIS LCD Development Kit
- Dual Mode Backlight Design (Day Mode 1000 nits / NVIS Mode Green B Compliant)
- LCD Controller Board (Dual LVDS Interface)
- Backlight Driving Board (B/L Cable to LCD, Driving Board Cable to LCD Controller Board)
- 9~36V Wide Range Power Board (Power Cable to AD Board, PXC DC PWR Connector)
- Horizontal OSD Keypad with OSD Cable to LCD Controller Board
- External Power Adapter (for testing only via PXC DC PWR Connector)
