- 18.5" LCD with 1920*1080 resolution

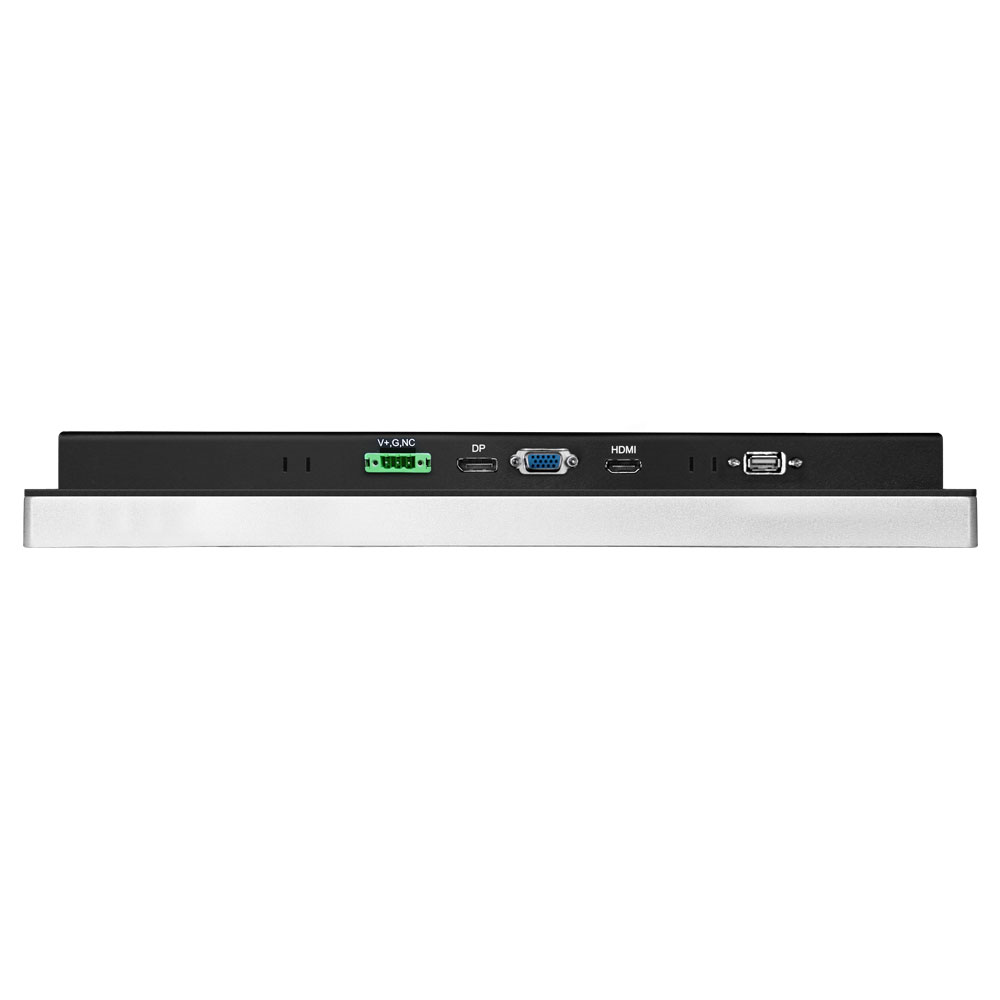

- VGA/DP/HDMI input
- USB Port for Touch
- DC 12V Power Input
- -20~70 °C Operating Temp
- Optional 1000 nits High Brightness
- Optional Optical Bonding Service
- Optional DC 9~36V Wide Range Power Input
- Specification
- LCD
Max. Resolution
1920*1080
Contrast Ratio
1000:1
Max. Color
16.7 M
Luminance (cd/m2)
350nits (Optional backlight 1000~1500 nits)
View Angle
89 / 89 / 89 / 89
Power Input
DC 12V with DC 12V adapter by 3-Pin Terminal Block
Mounting
‧ Panel Mount
‧ VESA Mount 75×75/100×100
Operating Temp.
-20 ~ 70 °C
- Ordering Information
- Ordering Information
TDM-P185WT
18.5″ Bezel-Free P-cap Monitor with Front Side IP65/66, VGA/DP/HDMI, Panel Mounting Kits and DC 12V Power Input
- Ordering Code
TDM-P185WT
-H / -OB / -B / -AG / -AR / -V
H = High Brightness 1000 nits LED backlight
OB = Optical Bonding
B = Glass withtout touch
AG = Anti-Glare
AR = Anti-Reflection
V = Vandal Proof Glass (By Project)
