LPC-B370WAGARH5-10 37" Stretch Bar Panel PC

LPC-B370WAGARH5-10

The LPC-B370WAGARH5-10 is a 37" ultra-wide stretch bar Panel PC with a special 16:4.5 aspect ratio and 1920 x 540 resolution, built for digital signage, public transportation, exhibition halls, department stores, and vending machines. High brightness 1500 nits LED backlight with power-efficient design keeps the display sunlight readable, while the fanless, wide-temperature, IP65/IP66 front panel construction is designed for continuous, unattended operation in demanding public and industrial environments.

Product Highlights - Advantages and Benefits

Rugged Bar-Type Display: 37" TFT-LCD with special 16:4.5 aspect ratio and 1920 x 540 resolution for shelf-edge, transit, and digital signage applications.
High Brightness: 1500 nits LED backlight for sunlight-readable, high ambient light environments.
Front Panel IP65 / IP66 Compliant: Protective, bezel-free front design with anti-glare, vandal-proof, anti-reflection cover glass.
Fanless, Wide-Temperature Design: -20~60°C operating temperature reduces the risk of fan failure and equipment malfunction during prolonged operation.
Integrated Panel PC: Intel® Celeron® N3160 SoC CPU with up to 8GB DDR3L memory, removable/lockable 2.5" HDD tray, and mSATA storage.
Rich I/O Connectivity: 4x USB 3.0, 2x GbE LAN, Display Port, HDMI, 3x RS-232, 1x RS-232/422/485 for flexible integration with PLCs, SCADA, MES, scanners, and controllers.
Simplified Installation: VESA 200x100mm / 400x100mm mounting and AC 100~264V power input simplify equipment architecture and OEM implementation.

System
CPU	Intel® Celeron® N3160 SoC CPU
System Memory	DDR3L SO-DIMM, up to 8 GB
External I/O Port	• 4 x USB 3.0 • 2 x GbE LAN (RTL8111G) • 1 x Display Port • 1 x HDMI • 3 x RS-232 • 1 x RS-232/422/485 • 1 x Audio • 1 x Power press button
Storage	• 1 x HDD Tray • 1 x mSATA (full size mini-PCIe)
Operating System	Win 7 Pro / WES7 / Win 8 / Win 10

Power Requirement
Power Input	AC 100~264V Power Input by AC-Inlet

LCD
Display Type	37" TFT-LCD
Max. Resolution	1920*540
Max. Color	1073.7M
Luminance	1500 nits
View Angle	89/89/89/89
Backlight Lifetime	50,000 hours

Cover Glass
Type	Anti-Glare, 2.8T

Mechanical
Construction	Metal Case
IP Rating	Front Panel IP65, IP66 Compliant. Back IP40
Mounting	VESA Mount : 200 * 100 mm & 400 * 100 mm
Dimension	990 mm x 340 mm x 97.5 mm

Environment
Operating Temp	-20~60 °C, IEC-60068-2-1/2/14
Storage Temp	-20~60 °C
Humidity	10~90% @40 °C, non-condensing
EMC	FCC / CE Class A Certification
Vibration	1.5 Grms @10~500Hz, IEC-60068-2-64

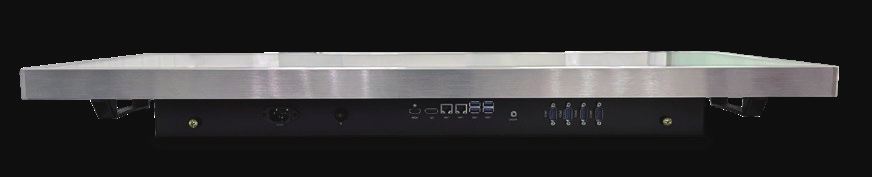

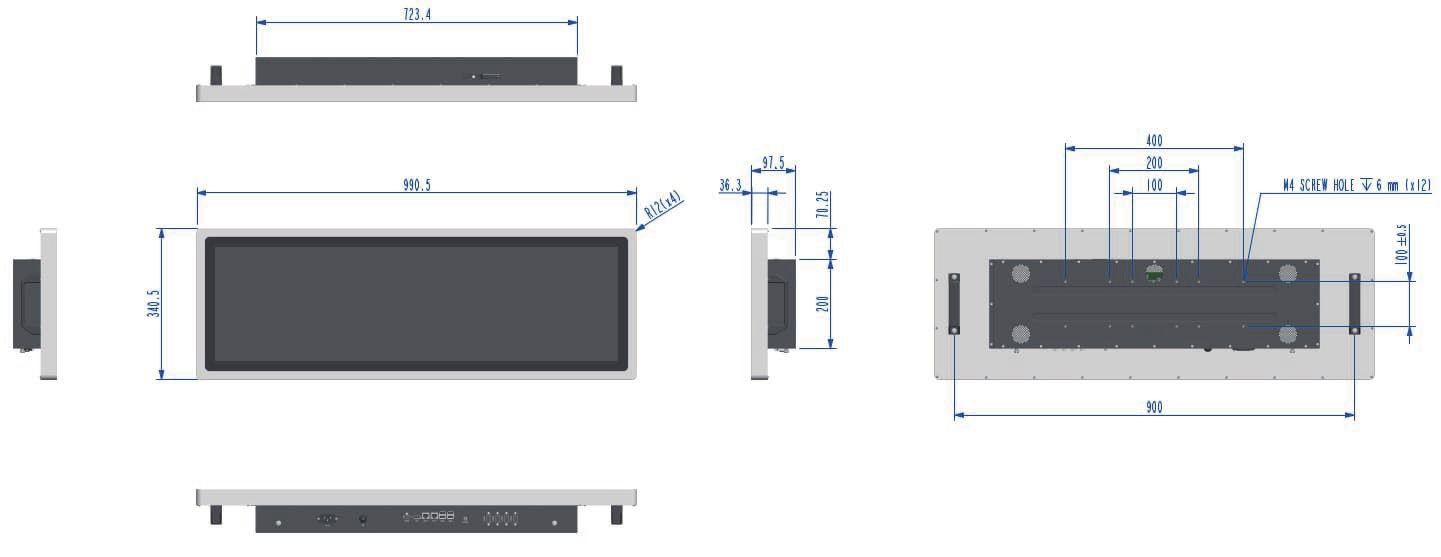

Dimension & I/O Connector

Ordering Information
LPC-B370WAGARH5-10	37" Panel PC with Intel® Celeron® N3160, 1500 nits, AG & AR, Removable 2.5" HDD Tray, AC 100~264V

Datasheet

Drawing
