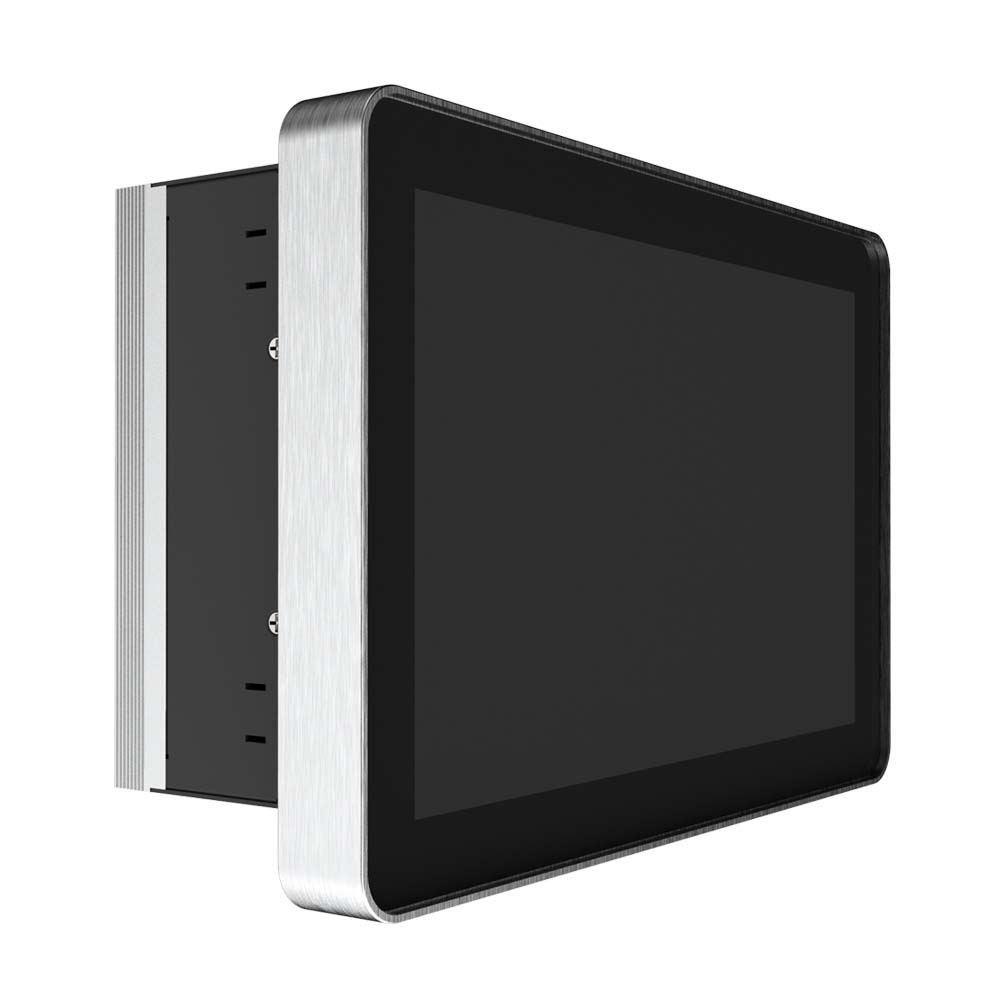

10.1" (1280*800) Bezel-Free P-cap Panel PC, Intel® Elkhart Lake SoC J6412 Processor, AG, IP65 Aluminum Front Bezel, CFast socket, DC 9~36V Power Input, -20~60°C
Processor

Intel® Celeron® J6412 Processor

System Memory

1 x DDR4 3200 SO-DIMM, up to 32GB

External I/O Port

‧ 1 x Display Port 1.4a
‧ 1 x HDMI 2.0b
‧ 4 x USB 3.0
‧ 2 x RJ45 (LAN1: Intel I225-V、LAN2 : Intel I211/I210AT)
‧ 1 x RS-232/422/485 (COM3)
‧ 3 x RS-232(COM2,3,4)
‧ 1 x Line-Out & 1 x Mic-In
‧ 1 x Power press button
‧ 1 x 3-Pin Power Input

Storage

‧ 1 x CFast Socket
‧ 1 x M.2 Key M, 2280 with SATA/PCIe x2 signal for SSD

Operating System

‧ Windows 10 IoT Enterprise LTSC
‧ Linux (by Request)

Expansion

‧ 1 x M.2 (Key B, 3042/3052) with PCIex1/USB 3.2 and USB 2.0 and SIM
‧ 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless

Touch

Projected Capacitive by USB

Display Type

10.1″ TFT LCD

Max. Resolution

1920*1080

Contrast Ratio

800:1

Max. Color

16.1 M

Luminance (cd/m2)

500 nits

View Angle

85 / 85 / 85/ 85

Power Type

DC 9~36V Wide Range Power Input

Operating Temp.

-40~70 °C ,IEC-60068-2-1/2/14

Storage Temp.

-40~70 °C

Cerfitication

FCC/CE ClassA

Humidity

10~90% @40 °C, non-condensing

EMC

‧ FCC / CE Class A Certification
‧ CE Class B Compliant

Vibration

1.5 Grms @10~500Hz, IEC-60068-2-64

Mounting

‧ VESA Mount 75 x 75 / 100 x 100
‧ M4 Screw Hole

Dimension

259.36 x 177 x 89.7mm

LPC-P101WAG-3AE

10.1″ (1280*800) Bezel-Free P-cap Panel PC, Intel® Elkhart Lake SoC J6412 Processor, AG, IP65 Aluminum Front Bezel, CFast socket, DC 9~36V Power Input.

LPC-P101WAG-3AE

-H / -OB / -B / -AG / -AR / -V

H = High Brightness 1000 nits LED backlight
OB = Optical Bonding
B = Glass Withtout Touch
AG = Anti-Glare
AR = Anti-Reflection
V = Vandal Proof Glass (By Project)
